Water filtering solutions

Housing for cartridges

HOUSING WITH TRANSPARENT AR FOR DRINKA LE WATER FOR HO E AND INDUSTRIAL USE

Housing 5” conn. ½” F

Housing 5” conn. ¾” F

Housing 5” conn. 1” F

Housing 5” conn. 1 ¼” F

Housing 5” conn. 1 ½” F

Accessories: Single bracket and Wrench

Technical specifications

Max working pressure:

6 bar

Temperature:

0° C - 50° C

Max flow:

½” F - 106.6 l/min

¾” F - 108.5 l/min

1” F - 115.6 l/min

1 ¼” F - 116.6 l/min

1 ½” F - 130.1 l/min

Jar material:

SAN

Dimensions

Width:

133 mm

Height:

195 mm

Housing for cartridges

HOUSING WITH TRANSPARENT AR FOR DRINKA LE WATER FOR HO E AND INDUSTRIAL USE

Housing 7” conn. ½” F

Housing 7” conn. ¾” F

Housing 7” conn. 1” F

Housing 7” conn. 1 ¼” F

Housing 7” conn. 1 ½” F

Accessories: Single bracket and Wrench

Technical specifications

Max working pressure:

6 bar

Temperature:

0° C - 50° C

Max flow:

½” F - 106.6 l/min

¾” F - 108.5 l/min

1” F - 115.6 l/min

1 ¼” F - 116.6 l/min

1 ½” F - 130.1 l/min

Jar material:

SAN

Dimensions

Width:

133 mm

Height:

245 mm

Housing for cartridges

HOUSING WITH TRANSPARENT AR FOR DRINKA LE WATER FOR HO E AND INDUSTRIAL USE

Housing 10” conn. ½” F

Housing 10” conn. ¾” F

Housing 10” conn. 1” F

Housing 10” conn. 1 ¼” F

Housing 10” conn. 1 ½” F

Accessories: Single bracket and Wrench

Technical specifications

Max working pressure:

6 bar

Temperature:

0° C - 50° C

Max flow:

½” F - 106.6 l/min

¾” F - 108.5 l/min

1” F - 115.6 l/min

1 ¼” F - 116.6 l/min

1 ½” F - 130.1 l/min

Jar material:

SAN

Dimensions

Width:

133 mm

Height:

307 mm

Housing for cartridges

HOUSING WITH TRANSPARENT AR FOR DRINKA LE WATER FOR HO E AND INDUSTRIAL USE

Housing 20” conn. ½” F

Housing 20” conn. ¾” F

Housing 20” conn. 1” F

Housing 20” conn. 1 ¼” F

Housing 20” conn. 1 ½” F

Accessories: Single bracket and Wrench

Technical specifications

Max working pressure:

6 bar

Temperature:

0° C - 50° C

Max flow:

½” F - 106.6 l/min

¾” F - 108.5 l/min

1” F - 115.6 l/min

1 ¼” F - 116.6 l/min

1 ½” F - 130.1 l/min

Jar material:

SAN

Dimensions

Width:

133 mm

Height:

588 mm

Housing 3 ways 5” ½

HOUSING WITH 3 WAYS 5" WITH TRANSPARENT JAR FOR DRINKABLE WATER FOR HOME AND INDUSTRIAL USE)

Parte superioară cu 3 căi de 1/2” (1 intrare - 2 ieșiri) *dop și oringuri incluse

Technical specifications

Max working pressure:

8 bar

Temperature:

0° C - 50° C

Max flow:

½" F - 106.6 l/min

Jar material:

SAN

Dimensions

Width:

85 mm

Height:

168 mm

5 Year Warranty

Brass Housing 3 ways 5” ½

MODULAR HOUSING DEVELOPED FOR TECHNICAL USE

5 Year Warranty
Parte superioară cu 3 căi de 1/2” (1 intrare - 2 ieșiri) *dop din alamă în dotare

Technical specifications

Max working pressure:

10 bar

Temperature:

0° C - 50° C

Max flow:

½" F - 106.6 l/min

Jar material:

SAN

Dimensions

Width:

85 mm

Height:

168 mm

Housing 3 ways 5”

HOUSING WITH FILTERING CARTRIDGES

Housing 3 ways 5” conn. ½” with WW cartridge

Housing 3 ways 5” conn. ½” with WM cartridge

Housing 3 ways 5” conn. ½” with PC cartridge

Accessories: Diffuser

Technical specifications

Max working pressure:

8 bar

Temperature:

0° C - 50° C

Max flow:

½" F - 25 l/min

Jar material:

SAN

Dimensions

Width:

97 mm

Height:

178 mm

5 Year Warranty

Brass Housing 3 ways 5”

BRASS HOUSING WITH FILTERING CARTRIDGES

5 Year Warranty

Brass houting 3 ways 5” conn. ½” with WW cartridge

Brass houting 3 ways 5” conn. ½” with WM cartridge

Brass houting 3 ways 5” conn. ½” with PC cartridge

Accessories: Diffuser

Technical specifications

Max working pressure:

8 bar

Temperature:

0° C - 50° C

Max flow:

½" F - 25 l/min

Jar material:

SAN

Dimensions

Width:

80 mm

Height:

175 mm

Compact kit 3 ways 5" DOUBLE

HOUSING WITH FILTERING CARTRIDGES

THE KIT CONTAINS: 1 WASHABLE MESH CARTRIDGE, 1 ACTIVATED CHARCOAL CARTRIDGE AND 2 BRACKETS

Single bracket
Cartridge WM compact (50 microns)
Cartridge AC compact (5 microns)

Technical specifications

Max working pressure:

8 bar

Temperature:

0° C - 50° C

Max flow:

½" F - 35 l/min

Jar material:

SAN

Dimensions

Width:

200 mm

Height:

178 mm

Compact kit with 3 ways 5" TRIPLE

HOUSING WITH FILTERING CARTRIDGES

THE KIT CONTAINS: 1 WASHABLE MESH CARTRIDGE,1 WOUNDED WIRE CARTRIDGE 1 ACTIVATED CHARCOAL CARTRIDGE AND 3 BRACKETS

Single bracket
Cartridge WW compact (25 microns)
Cartridge WM compact (50 microns)
Cartridge AC compact (5 microns)

Technical specifications

Max working pressure:

8 bar

Temperature:

0° C - 50° C

Max flow:

½" F - 35 l/min

Jar material:

SAN

Dimensions

Width:

308 mm

Height:

178 mm

Housing kit 5" DUPLEX

Housing KIT 5” conn. ½” F

Housing KIT 5” conn. ¾” F

Housing KIT 5” conn. 1” F

Housing KIT 5” conn. 1 ¼” F

Housing KIT 5” conn. 1 ½” F

Accessories: Single bracket and Wrench

Technical specifications

Max working pressure:

6 bar

Temperature:

0° C - 50° C

Max flow:

½” F - 106.6 l/min

¾” F - 108.5 l/min

1” F - 115.6 l/min

1 ¼” F - 116.6 l/min

1 ½” F - 130.1 l/min

Jar material:

SAN

Dimensions

Width:

260 mm

Height:

235 mm

Housing kit 7" DUPLEX

Housing KIT 7” conn. ½” F

Housing KIT 7” conn. ¾” F

Housing KIT 7” conn. 1” F

Housing KIT 7” conn. 1 ¼” F

Housing KIT 7” conn. 1 ½” F

Accessories: Single bracket and Wrench

Technical specifications

Max working pressure:

6 bar

Temperature:

0° C - 50° C

Max flow:

½” F - 106.6 l/min

¾” F - 108.5 l/min

1” F - 115.6 l/min

1 ¼” F - 116.6 l/min

1 ½” F - 130.1 l/min

Jar material:

SAN

Dimensions

Width:

260 mm

Height:

285 mm

Housing kit 10" DUPLEX

Housing KIT 10” conn. ½” F

Housing KIT 10” conn. ¾” F

Housing KIT 10” conn. 1” F

Housing KIT 10” conn. 1 ¼” F

Housing KIT 10” conn. 1 ½” F

Accessories: Single bracket and Wrench

Technical specifications

Max working pressure:

6 bar

Temperature:

0° C - 50° C

Max flow:

½” F - 106.6 l/min

¾” F - 108.5 l/min

1” F - 115.6 l/min

1 ¼” F - 116.6 l/min

1 ½” F - 130.1 l/min

Jar material:

SAN

Dimensions

Width:

260 mm

Height:

360 mm

Housing kit 5" TRIPLEX

Housing KIT 5” conn. ½” F

Housing KIT 5” conn. ¾” F

Housing KIT 5” conn. 1” F

Housing KIT 5” conn. 1 ¼” F

Housing KIT 5” conn. 1 ½” F

Accessories: Single bracket and Wrench

Technical specifications

Max working pressure:

6 bar

Temperature:

0° C - 50° C

Max flow:

½” F - 106.6 l/min

¾” F - 108.5 l/min

1” F - 115.6 l/min

1 ¼” F - 116.6 l/min

1 ½” F - 130.1 l/min

Jar material:

SAN

Dimensions

Width:

400 mm

Height:

235 mm

Housing kit 7" TRIPLEX

Housing KIT 7” conn. ½” F

Housing KIT 7” conn. ¾” F

Housing KIT 7” conn. 1” F

Housing KIT 7” conn. 1 ¼” F

Housing KIT 7” conn. 1 ½” F

Accessories: Single bracket and Wrench

Technical specifications

Max working pressure:

6 bar

Temperature:

0° C - 50° C

Max flow:

½” F - 106.6 l/min

¾” F - 108.5 l/min

1” F - 115.6 l/min

1 ¼” F - 116.6 l/min

1 ½” F - 130.1 l/min

Jar material:

SAN

Dimensions

Width:

400 mm

Height:

285 mm

Housing kit 10" TRIPLEX

Housing KIT 10” conn. ½” F

Housing KIT 10” conn. ¾” F

Housing KIT 10” conn. 1” F

Housing KIT 10” conn. 1 ¼” F

Housing KIT 10” conn. 1 ½” F

Accessories: Single bracket and Wrench

Technical specifications

Max working pressure:

6 bar

Temperature:

0° C - 50° C

Max flow:

½” F - 106.6 l/min

¾” F - 108.5 l/min

1” F - 115.6 l/min

1 ¼” F - 116.6 l/min

1 ½” F - 130.1 l/min

Jar material:

SAN

Dimensions

Width:

400 mm

Height:

360 mm

Housing with crystal polyphosphates

RECOMMENDED FOR OF DISHWASHERS AND BOILERS

Housing 5” conn. ½” F

Housing 5” conn. ¾” F

Housing 5” conn. 1” F

Housing 5” conn. 1 ¼” F

Housing 5” conn. 1 ½” F


Housing 7” conn. ½” F

Housing 7” conn. ¾” F

Housing 7” conn. 1” F

Housing 7” conn. 1 ¼” F

Housing 7” conn. 1 ½” F


Housing 10” conn. ½” F

Housing 10” conn. ¾” F

Housing 10” conn. 1” F

Housing 10” conn. 1 ¼” F

Housing 10” conn. 1 ½” F

Accessories: Single bracket and Wrench

Technical specifications

Max working pressure:

6 bar

Temperature:

0° C - 50° C

Max flow:

½” F - 106.6 l/min

¾” F - 108.5 l/min

1” F - 115.6 l/min

1 ¼” F - 116.6 l/min

1 ½” F - 130.1 l/min

Jar material:

SAN

Dimensions

Width:

133 mm

Height1:

195 mm

Height2:

245 mm

Height3:

307 mm

Washing machine saver housing

Housing 5" conn. ¾” M - ¾" F

Protection against limescale help

Technical specifications

Max working pressure:

3,5 bar

Temperature:

0° C - 30° C

Max flow:

¾” F/M - 40 l/min

Jar material:

SAN

Dimensions

Width:

60 mm

Height:

245 mm

Washable cartridge

Washable mesh cartridge for home and industrial use Suitable to remove imurities and sediments

Cartridge WM 5”

Cartridge WM 7”

Cartridge WM 10”

Cartridge WM 20”

Technical specifications

Max working pressure:

8 bar

Temperature:

0° C - 60° C

Filtration power:

60 microns

Re-washable cartridge with stainless steel mesh

Polypropylene cartridge with stainless steel screen or home and industrial use Suitable to remove impurities and sediments

Cartridge SWM 5”

Cartridge SWM 7”

Cartridge SWM 10”

Cartridge SWM 20”

Technical specifications

Max working pressure:

8 bar

Temperature:

0° C - 50° C

Filtration power:

100 microns

Activated charcoal cartridge

Activated charcoal cartridge for home and industrial use. These cartidges are made from natural active synthesized coal with a high capacity to destroy residual chlorine in water through a catalytic reaction

Cartridge CA 5”

Cartridge CA 7”

Cartridge CA 10”

Cartridge CA 20”

Technical specifications

Max working pressure:

6 bar

Temperature:

0° C - 50° C

Filtration power:

5 microns

Wounded wire cartridge

Wounded wire cartridge for domestic and industrial use to treat primary water, drinkable and undrinkable water.

Cartridge WW 5”

Cartridge WW 7”

Cartridge WW 10”

Cartridge WW 20”

Technical specifications

Max working pressure:

8 bar

Temperature:

0° C - 60° C

Filtration power:

At request we can provide: 1, 3, 5, 10, 20 microns

Crystal polyphosphate cartridge

PC cartridge for domestic and industrial use to treat primary water, drinkable and undrinkable water

Cartridge PC 5”

Cartridge PC 7”

Cartridge PC 10”

Technical specifications

Max working pressure:

8 bar

Temperature:

0° C - 25° C

Filtration power:

60 microns

Plastic proportional polyphosphate dispensers

Housing Dosacal 1/2”

Housing Dosacal Stop 1/2”

Technical specifications

Max working pressure:

3,5 bar

Temperature:

0° C - 45° C

Max. flow:

25 l/min

Conn.

1/2" F

Refill life:

12-15m3

Plastic proportional polyphosphate dispensers

Housing Dosapol OTT - 90° conn. 1/2” F-MOVABLE

Housing Dosapol OTT - 90° STOP conn. 1/2” F-MOVABLE

Housing Dosapol OTT - STOP conn. 1/2” F-MOVABLE

Housing Dosapol OTT - 90° conn. 3/4” F-FIXED

Housing Dosapol OTT - 90° STOP conn. 3/4” F-FIXED

Housing Dosapol OTT - STOP conn. 3/4” F-FIXED

Technical specifications

Max working pressure:

3,5 bar

Temperature:

0° C - 45° C

Max. flow:

25 l/min

Refill life:

12-15m3

Plastic proportional polyphosphate dispensers

Housing Dosapol MAXI OTT - 90° conn. 3/4” F-1" FIXED

Housing Dosapol MAXI OTT - STOP conn. 3/4” F-1 1/4"F MOVABLE

Technical specifications

Max working pressure:

3,5 bar

Temperature:

0° C - 45° C

Max. flow:

100 l/min

Refill life:

100-120m3

Polyphosphates refills ready to use

Polistick

Universal anti-limestone Polyphosphates refills for use with all proportional feeders.

Mechanical metering pump Dosaflu

Dosaflu

Dosaflu Spazio

Technical specifications

Max working pressure:

3 bar

Temperature:

5° C - 50° C

Self cleaning filter Ecoflow Mini

Filter Ecoflow mini

Stainless steel cartridge (100 microns)

Technical specifications

Max working pressure:

16 bar

Temperature:

0° C - 60° C

Max flow:

15 l/min

Self cleaning filter Ecoflow Plus

Housing Ecoflow Plus

Stainless steel cartridge (100 microns)

Technical specifications

Max working pressure:

8 bar

Temperature:

0° C - 45° C

Max flow:

1/2”M 20 l/min

3/4”F 20 l/min

Self cleaning filter Ecoflow Maxi

Housing Ecoflow Maxi

Stainless steel cartridge (100 microns)

Technical specifications

Max working pressure:

8 bar

Temperature:

0° C - 45° C

Max flow:

3/4”M 25 l/min

1”F 25 l/min

Self cleaning filter Ecoflow Big

Filter Ecoflow Big

Filter Ecoflow Big(M)

Stainless steel cartridge (100 microns)

Technical specifications

Max working pressure:

16 bar

Temperature:

0° C - 45° C

Max flow:

80 l/min

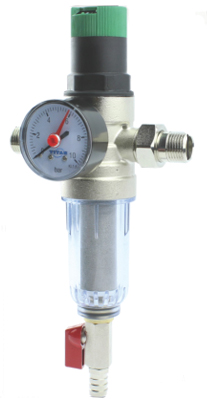

Self cleaning filter Ecoflow Pres

Filter Ecoflow Pres

Stainless steel cartridge (100 microns)

Technical specifications

Max working pressure:

16 bar

Temperature:

0° C - 45° C

Max flow:

80 l/min

Faucet activated charcoal filtering kit

Activated charcoal filtering kit

CA Cartridge for F/KIT

Technical specifications

Max working pressure:

8 bar

Temperature:

max. 25° C

Max flow:

1 l/min

Liquid polyphosphate

Liquid polyphosphate

Liquid polyphosphates anti-limescale ready to use.

Polyphosphate crystal

Polif-CR (kg 1)

Crystal polyphosphates anti-limescale ready to use.

Magnetic descaler - mini

Ecomag mini 1/2”

Technical specifications

Max working pressure:

8 bar

Temperature:

0° C - 45° C

Max flow:

800 l/h

Magnetic descaler - maxi

Ecomag maxi 1/2” F

Ecomag maxi 3/4” F

Technical specifications

Max working pressure:

8 bar

Temperature:

0° C - 45° C

Max flow:

1/2" - 1/2" 800 l/h

3/4" - 3/4" 1200 l/h

Brass magnetic descaler

ECOMAG 1/2” F

ECOMAG 3/4” F

ECOMAG 1” F

Technical specifications

Max working pressure:

8 bar

Temperature:

0° C - 45° C

Max flow:

1/2" F 600 l/h

3/4" F 900 l/h

1" F 1200 l/h

Magnetic descalers for washing machine and dishwashers

ECOMAG Washing machine 3/4” M - 3/4" F

Technical specifications

Max working pressure:

8 bar

Temperature:

0° C - 45° C

Max flow:

3/4" M - 3/4" F 400 l/h

Submersible stainless steel pump

Technical specifications

Model:

BAR-4SKM100

KW:

1.25 kw

HP:

0,75 kw

Amp:

5,2 A

Max flow:

48 l/min

Max Head:

60 M

Model:

BAR-4SKM150

KW:

1.65 kw

HP:

1,1 kw

Amp:

7,2 A

Max flow:

48 l/min

Max Head:

98 M

Model:

BAR-4SKM200

KW:

2.15 kw

HP:

1,5 kw

Amp:

10 A

Max flow:

48 l/min

Max Head:

120 M

Hot water circulation pump

Technical specifications

Model:

sicurACQUA 25/4

Voltage:

230 V

Max pressure:

10 bar

Absorption:

≤ 70° - 0,05 bari

≤ 90° - 0,28 bari

≤ 110° - 1,08 bari

Max Head:

4 m

Model:

sicurACQUA 25/6

Voltage:

230 V

Max pressure:

10 bar

Absorption:

≤ 70° - 0,05 bari

≤ 90° - 0,28 bari

≤ 110° - 1,08 bari

Max Head:

6 m

Neutralizing filter

NEUTRASTICK - Refills for NEUTRAWATER

6 recharges for NEUTRAWATER

Neutralizing filter for the acidic condense produced by condensing boilers.

Technical specifications

Model:

NEUTRAWATER-D

Dimensions:

≤ 75°C-0,05 bar

90°C-0,28 bar

110°C-1,08 bar

Max flow:

8L/h

Max pressure:

0,5 bar

Max temperature:

60°C

Model:

NEUTRAWATER-L

Dimensions:

≤ 75°C-0,05 bar

90°C-0,28 bar

110°C-1,08 bar

Max flow:

8L/h

Max pressure:

0,5 bar

Max temperature:

60°C

REFILLS FOR NETRAWATER

NEUTRASTICK - Refills for NEUTRAWATER

Each pack contains 12 boxes of 6 refills each

Polystick maxi polyphosphates refill ready to use

POLISTICK MAXI

Universal polyphosphates refills anti-limestone for use with all proportional feeders.

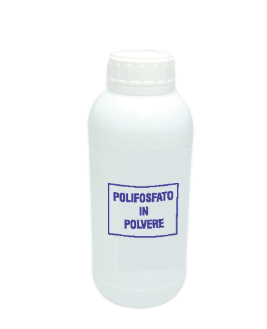

Polyphosphate powder

POLIF-P (kg 1)

Polyphosphate powder anti-limescale for use with all proportional feeders.

25 Years Warranty

Turbo Mag Line Filter

25 Years Warranty

Turbo Mag Line Filter

360 Connector
COPPER - pipe connectors
PLASTIC/STEEL - pipe connectors

Technical specifications

Chemical compatibility:

CB7535 brass nickel plated

Max inlet pressure

10 bar

Working temperature:

0° C - 100° C

Degree of filtration:

800 µm

Threaded connections:

G 3/4” MF UNI-EN-ISO 228

Kv (Range with Op 1 bar):

5,4 m3/h

25 Years Warranty

TurboMag-OT

25 Years Warranty

TurboMag-OT

Technical specifications

Max inlet pressure

8 bar

Working temperature:

0° C - 110° C

Degree of filtration:

800 µm

Threaded connections:

G 3/4” MF UNI-EN-ISO 228

Kv (Range with Op 1 bar):

5,4 m3/h

25 Years Warranty

TurboMag-OTPL

25 Years Warranty

TurboMag-OTPL

Technical specifications

Max inlet pressure

3 bar

Working temperature:

0° C - 90° C

Degree of filtration:

800 µm

Threaded connections:

G 3/4” MF UNI-EN-ISO 228

Kv (Range with Op 1 bar):

5,4 m3/h

25 Years Warranty

TurboMag-PL

25 Years Warranty

TurboMag-PL

Technical specifications

Max inlet pressure

3 bar

Working temperature:

0° C - 90° C

Degree of filtration:

800 µm

Threaded connections:

G 3/4” MF UNI-EN-ISO 228

Kv (Range with Op 1 bar):

5,4 m3/h

TurboMag-ADT

TurboMag-ADT

Technical specifications

filter adaptor for easier cleaning operations of the heating system. (optional).

25 Years Warranty

ProMag MET

25 Years Warranty
Flexible Hose Connector Included

Technical specifications

Chemical compatibility:

CB7535 brass nickel plated

Max inlet pressure

10 bar

Working temperature:

0° C - 100° C

Degree of filtration:

800 µm

Threaded connections:

G 3/4” MF UNI-EN-ISO 228

Kv (Range with Dp 1 bar):

5,4 m3/h

25 Years Warranty

ProMag

25 Years Warranty
Flexible Hose Connector Included

Technical specifications

Chemical compatibility:

PP FV 30%

Max inlet pressure

8 bar

Working temperature:

0° C - 100° C

Degree of filtration:

800 µm

Threaded connections:

G 3/4” MF UNI-EN-ISO 228

Kv (Range with Dp 1 bar):

5,4 m3/h

25 Years Warranty

ProMag PL

25 Years Warranty
Flexible Hose Connector Included

Technical specifications

Chemical compatibility:

PP FV 30%

Max inlet pressure

8 bar

Working temperature:

0° C - 100° C

Degree of filtration:

800 µm

Threaded connections:

G 3/4” MF UNI-EN-ISO 228

Kv (Range with Dp 1 bar):

5,4 m3/h
